extensions for PDRblockMesh
As noted off-line and EP1247, to be truly useful the PDRblockMesh requires an outer expansion zone. @pratap
No child items are currently assigned. Use child items to break down this issue into smaller parts.
Link issues together to show that they're related. Learn more.
Activity
- Mark OLESEN changed milestone to %v2012
changed milestone to %v2012
- Author Maintainer
Extended the PDRblockMeshDict to include an optional
outer
definition. Example,// Treatment of the outer region outer { type sphere; // (none | extend | box | sphere) [default: none] onGround true; // Module on the ground? [default: false] expansion relative; // (uniform | ratio | relative) [default: ratio] ratios 1.1; size 3; // Overall outer/inner size nCells 10; // Number of cells for outer region // size (3 4); // nCells (10 12); }
The meaning of the
type
:none
extend
Extend the inner region in x/y/z directions by effectively adding additional sets of cells to the outside perimeter

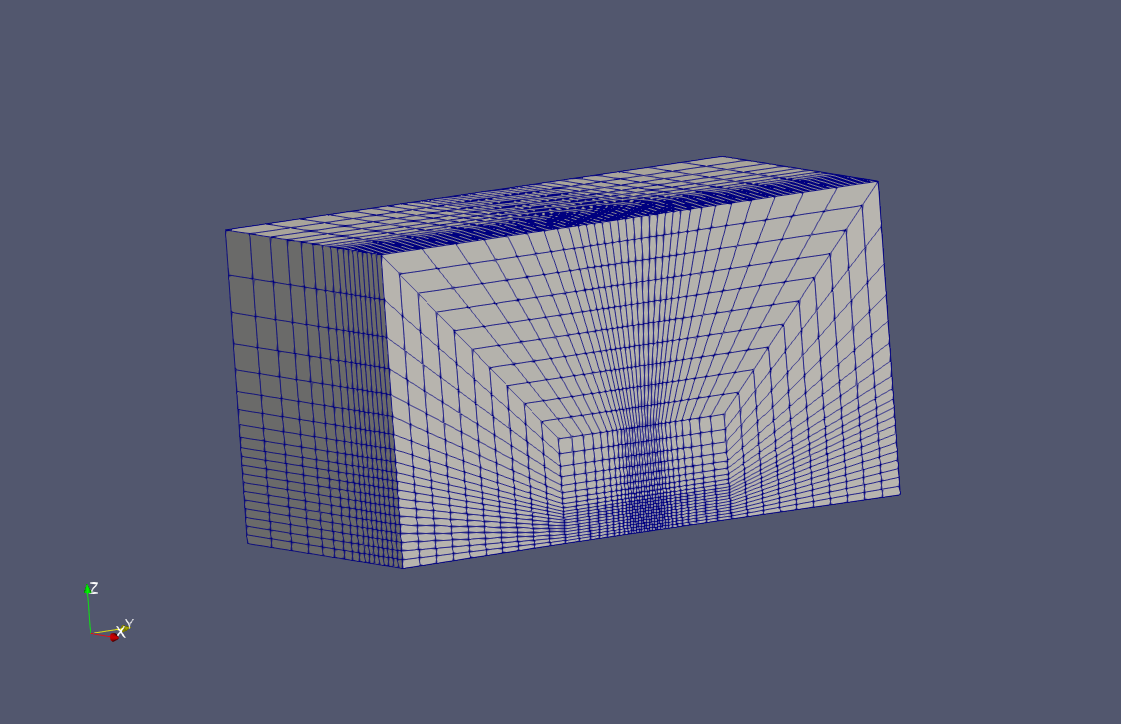

box
Add an o-grid, with box-shape treatment
sphere
Edited by Mark OLESEN - Mark OLESEN mentioned in issue #1907 (closed)
mentioned in issue #1907 (closed)
- Mark OLESEN mentioned in commit 84b4f35e
mentioned in commit 84b4f35e
- Mark OLESEN mentioned in commit 8214b9d3
mentioned in commit 8214b9d3
- Mark OLESEN mentioned in commit 3ed8d88e
mentioned in commit 3ed8d88e
- Mark OLESEN mentioned in commit cf3d983b
mentioned in commit cf3d983b
- Mark OLESEN closed
closed
